NPN vs PNP Transistors: BJT Basics, Differences & Applications
Bipolar Junction Transistors (BJTs) are fundamental components in electronics. Whether you’re building an Arduino project, repairing a circuit board, designing an amplifier, or controlling a small electrical load, understanding NPN and PNP transistors can help you select the right component and avoid common wiring mistakes.
Although NPN and PNP transistors perform similar functions, their operating polarities, current directions, and typical circuit connections are different.
In this guide, we’ll explain how BJT transistors work, compare NPN and PNP types, explore practical switching circuits, and discuss the specifications that matter when selecting a transistor.
What Is a BJT Transistor?
A Bipolar Junction Transistor (BJT) is a three-terminal semiconductor device commonly used for switching and signal amplification.
A BJT has three terminals:
- Base (B): The control terminal that influences current flowing through the transistor.
- Collector (C): One of the main current-carrying terminals.
- Emitter (E): The other main current-carrying terminal.
In normal active operation, a relatively small base current controls a larger collector current.
The basic current-gain relationship is:
IC ≈ β × IB
Where:
- IC = Collector current
- IB = Base current
- β (beta), also called hFE = DC current gain
However, transistor gain varies with the device, collector current, temperature, and operating conditions. This relationship applies primarily to forward-active operation, not as a reliable design rule for a fully saturated switching transistor.
BJTs are widely used in switching circuits, amplifiers, sensor interfaces, control electronics, and repair applications.
NPN vs PNP Transistors: What’s the Difference?
The two primary types of bipolar junction transistors are NPN and PNP.
An NPN transistor has an N-type, P-type, N-type semiconductor structure.
A PNP transistor has a P-type, N-type, P-type semiconductor structure.
Their most important practical differences involve the base-emitter voltage polarity and the direction of conventional current flow.
| Feature | NPN Transistor | PNP Transistor |
|---|---|---|
| Semiconductor structure | N-P-N | P-N-P |
| Base activation | Base more positive than emitter | Base more negative than emitter |
| Conventional current flow | Collector to emitter | Emitter to collector |
| Typical switching position | Low-side | High-side |
| Symbol emitter arrow | Points outward | Points inward |
| Typical control behavior | Active-high | Active-low |
| Common applications | LED drivers, switching, amplifiers | High-side switches, complementary amplifiers |
Important: NPN and PNP transistors are not generally interchangeable. Even if their packages look identical, the circuit must support the correct polarity and pin connections.
How Does an NPN Transistor Work?
An NPN transistor conducts when its base-emitter junction is forward-biased.
For many silicon BJTs, the base-to-emitter voltage (VBE) during conduction is approximately 0.6–0.7 V under typical conditions. The exact value varies with current, temperature, and device design.
In a common NPN switching circuit:
- The emitter is connected to ground.
- The collector is connected to the load.
- The other side of the load is connected to the positive supply.
- The base receives control current through a resistor.
When sufficient base current is supplied, the transistor can enter saturation and act as a closed switch.
When the base drive is removed and the transistor is properly biased off, the load stops conducting, apart from small leakage currents.
Example: Using an NPN Transistor to Control an LED
A simple circuit can use an NPN transistor to switch an LED on and off from a microcontroller output.
Typical connections:
- Emitter → Ground
- Collector → LED cathode
- LED anode → Current-limiting resistor → +5 V
- Base → Base resistor → Microcontroller output
- Microcontroller ground → Circuit ground
When the microcontroller drives the base high through the resistor, the transistor turns on and current flows through the LED.
When the output goes low, the transistor turns off.
Both the LED resistor and base resistor are essential. The actual resistor values depend on the supply voltage, LED characteristics, intended current, and selected transistor.
This arrangement is called low-side switching, because the transistor switches the ground-side connection of the load.
How Does a PNP Transistor Work?
A PNP transistor operates with the opposite base-emitter polarity.
In a typical silicon PNP transistor, the base must be approximately 0.6–0.7 V below the emitter to forward-bias the base-emitter junction under common operating conditions.
For a basic PNP high-side switch:
- The emitter connects to the positive supply.
- The collector connects to the load.
- The opposite side of the load connects to ground.
- The base is driven through an appropriate resistor and control circuit.
When the base is pulled sufficiently below the emitter, the transistor can turn on.
When the base is brought close to the emitter voltage, the transistor turns off.
Example: PNP High-Side Switching
A PNP transistor may be useful when you need to switch the positive supply connection instead of the ground return.
Typical connections:
- Emitter → Positive supply
- Collector → Load
- Load → Ground
- Base → Current-limiting resistor and suitable control circuit
One important limitation is that the control circuit must provide the correct voltage range.
For example, a 3.3 V microcontroller output generally cannot directly turn off a PNP transistor whose emitter is connected to a 12 V supply. A level-shifting circuit or suitable driver is required.
BJT Operating Modes: Cutoff, Active, and Saturation
Understanding transistor operating modes helps explain why BJTs behave differently in switches and amplifiers.
1. Cutoff Mode
The transistor is effectively off because the base-emitter junction is not sufficiently forward-biased.
Collector current is very small, apart from leakage.
Typical use: OFF state in a transistor switch.
2. Forward-Active Mode
The transistor operates in a region where collector current is approximately related to base current through current gain.
Typical use: Analog amplification and signal conditioning.
3. Saturation Mode
Both transistor junctions are forward-biased, and the collector-emitter voltage becomes relatively low.
The transistor behaves approximately like a closed switch, although it still has a voltage drop and dissipates power.
Typical use: ON state in a BJT switching circuit.
A fourth mode, reverse-active operation, is also possible, but it is rarely used in ordinary switching designs.
How to Choose the Right NPN or PNP Transistor
When selecting a BJT for a project or replacement, do not rely on NPN/PNP polarity alone.
Check the following specifications in the manufacturer’s datasheet.
| Specification | What It Means | Why It Matters |
|---|---|---|
| VCEO | Collector-emitter voltage rating | Must withstand circuit voltage |
| IC | Maximum collector current | Must accommodate load current |
| PD | Maximum power dissipation | Helps prevent overheating |
| hFE | DC current gain | Important in amplifier and bias designs |
| VCE(sat) | Collector-emitter saturation voltage | Affects voltage drop and switching losses |
| fT | Transition frequency | Relevant to high-frequency applications |
| Package | TO-92, TO-220, SOT-23, etc. | Determines mounting and thermal characteristics |
| Pinout | Base, collector, emitter arrangement | Prevents incorrect wiring |
Common BJT Part Numbers
Some frequently encountered small-signal transistors include:
- 2N3904: General-purpose NPN transistor
- 2N3906: General-purpose PNP transistor
- PN2222A / 2N2222 family: Common NPN switching transistors
- BC547: General-purpose NPN transistor
- BC557: General-purpose PNP transistor
- S8050: NPN transistor commonly used in switching applications
- S8550: PNP transistor commonly used in complementary applications
These are examples, not universal substitutes for one another.
Always verify the exact manufacturer datasheet, especially pin arrangement, voltage limits, collector current, and package type. Even familiar transistor numbers can be supplied in different packages or with different lead configurations.
Example: Calculating a Base Resistor for an NPN Switch
Suppose you want to control an LED drawing approximately 15 mA with a 5 V microcontroller output.
For a simple saturated BJT switch, a conservative starting design might use a forced current gain of 10.
Step 1: Estimate the base current
IB = IC / 10
IB = 15 mA / 10 = 1.5 mA
Step 2: Estimate the base resistor
RB = (VCONTROL − VBE) / IB
Using a preliminary VBE assumption of 0.7 V:
RB = (5 V − 0.7 V) / 0.0015 A
RB ≈ 2,867 Ω
A standard 2.7 kΩ resistor may be a reasonable initial choice for this illustrative circuit.
However, the actual transistor’s saturation specifications, microcontroller output-current limits, and operating conditions must be checked before finalizing the design.
The LED also requires its own current-limiting resistor.
For inductive loads such as relay coils, appropriate flyback protection is usually necessary.
Common Mistakes When Using BJT Transistors
1. Connecting the Wrong Pinout
Not every TO-92 transistor uses the same E-B-C arrangement.
Always check the datasheet before inserting the component into a breadboard or PCB.
2. Forgetting the Base Resistor
Connecting a control output directly to a forward-biased base-emitter junction can create excessive current and damage the transistor or controller.
3. Treating NPN and PNP as Interchangeable
The devices require different control polarity and circuit connections.
4. Ignoring Power Dissipation
A transistor may meet its collector-current rating but still overheat because of excessive voltage drop and power loss.
5. Assuming hFE Is Constant
Current gain varies significantly and should not be treated as a fixed number across all operating conditions.
6. Using a High-Side PNP Without Checking Voltage Levels
A controller operating at 3.3 V or 5 V may need an additional driver stage to control a higher-voltage PNP switch correctly.
BJT vs MOSFET: Which Should You Use?
BJTs and MOSFETs can both act as electronic switches, but their control characteristics differ.
| Feature | BJT | MOSFET |
|---|---|---|
| Control | Base current | Gate voltage |
| Input drive | Requires steady base drive in ON state | Mostly capacitive gate drive |
| Switching losses | Depends on saturation voltage and current | Depends largely on on-resistance and switching conditions |
| Analog applications | Widely used | Widely used |
| Higher-current switching | Possible with suitable devices | Often preferred |
| Beginner circuits | Useful for learning basic switching | Useful for efficient digital switching |
For simple low-current projects, a BJT may be an economical and practical solution.
For higher-current switching or applications where efficiency matters, a properly selected MOSFET may be more suitable.
The best choice depends on supply voltage, load current, switching frequency, drive capability, and thermal requirements.
Frequently Asked Questions
What is the main difference between NPN and PNP transistors?
An NPN transistor generally turns on when its base is sufficiently more positive than its emitter. A PNP transistor generally turns on when its base is sufficiently more negative than its emitter. Their conventional current directions are opposite.
Can I replace an NPN transistor with a PNP transistor?
Not directly in most circuits. NPN and PNP transistors use opposite operating polarities, so changing between them generally requires circuit modifications.
What does BJT stand for?
BJT stands for Bipolar Junction Transistor. It is a semiconductor device that uses both electrons and holes in its operation.
How can I identify NPN and PNP transistors?
Check the manufacturer’s part number and datasheet. You can also use a multimeter in diode-test mode to examine the base-emitter and base-collector junctions, provided the transistor is isolated sufficiently from the surrounding circuit.
Are BJT transistors suitable for Arduino projects?
Yes. BJTs are commonly used for LED switching, small-load control, signal amplification, and other DIY electronics projects. Always verify voltage levels, current requirements, and protection components.
Is a BJT a voltage-controlled or current-controlled device?
In introductory circuit design, a BJT is often modeled as a current-controlled device because base current relates to collector current in forward-active operation. More detailed transistor models also describe the strong dependence of collector current on base-emitter voltage.
Which is better for switching, NPN or PNP?
Neither is universally better. NPN devices are commonly convenient for low-side switching, while PNP devices are useful for certain high-side switching applications. The correct choice depends on how the load and control circuit are arranged.
Explore NPN & PNP Transistors for Your Next Project
Whether you’re assembling a breadboard circuit, replacing a damaged component, or experimenting with transistor switching, having the correct BJT type and specifications is essential.

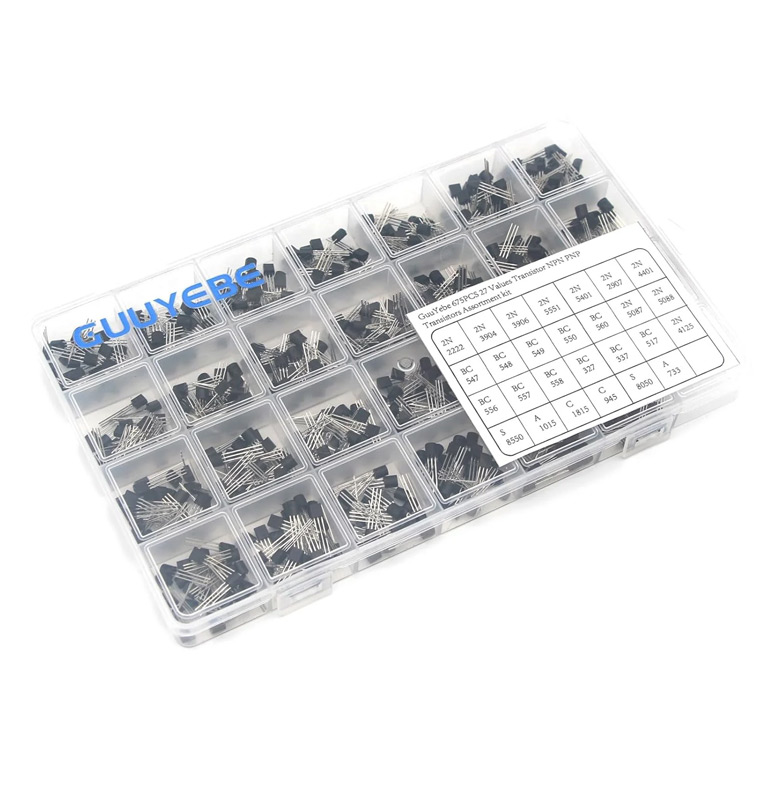

A transistor assortment kit can be convenient for electronics hobbyists, students, and repair technicians who work with multiple transistor types.
Before purchasing, review the included part numbers, datasheets, quantities, package styles, and pinouts to ensure they meet your project requirements.
Explore BJT transistor options and compare available products from trusted retailers.
Shopping links may include affiliate links. We may earn a commission from qualifying purchases at no additional cost to you.
Final Thoughts
NPN and PNP bipolar junction transistors are essential building blocks in electronics. Understanding their polarity, operating modes, base-drive requirements, and datasheet specifications helps you design more reliable circuits and troubleshoot common problems.
Start with simple switching experiments, verify every transistor’s pinout, and gradually explore more advanced amplifier and control applications.
