LG EAV63992101 LED Backlight Strips Buying Guide
EAV63992101 LED Backlight Strips for LG 75-Inch TVs
Searching for EAV63992101 LED backlight strips for an LG 75-inch television? This GuuYebe replacement kit contains 10 LED strip sections (5 left + 5 right) associated with select LG 75UK, 75UM, and 75UN models. Use this guide to review the parts, confirm your TV version, and decide whether the kit matches your repair.
View EAV63992101 Backlight Kit at GuuYebe

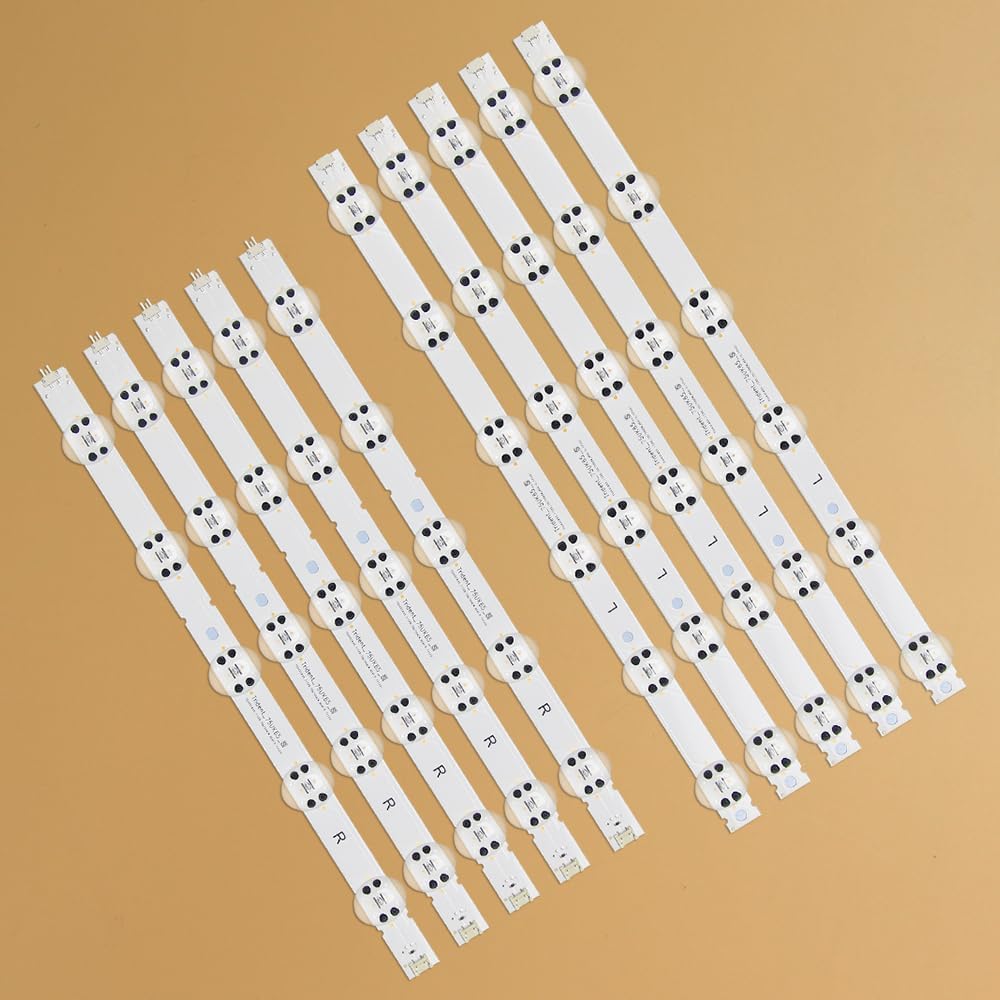

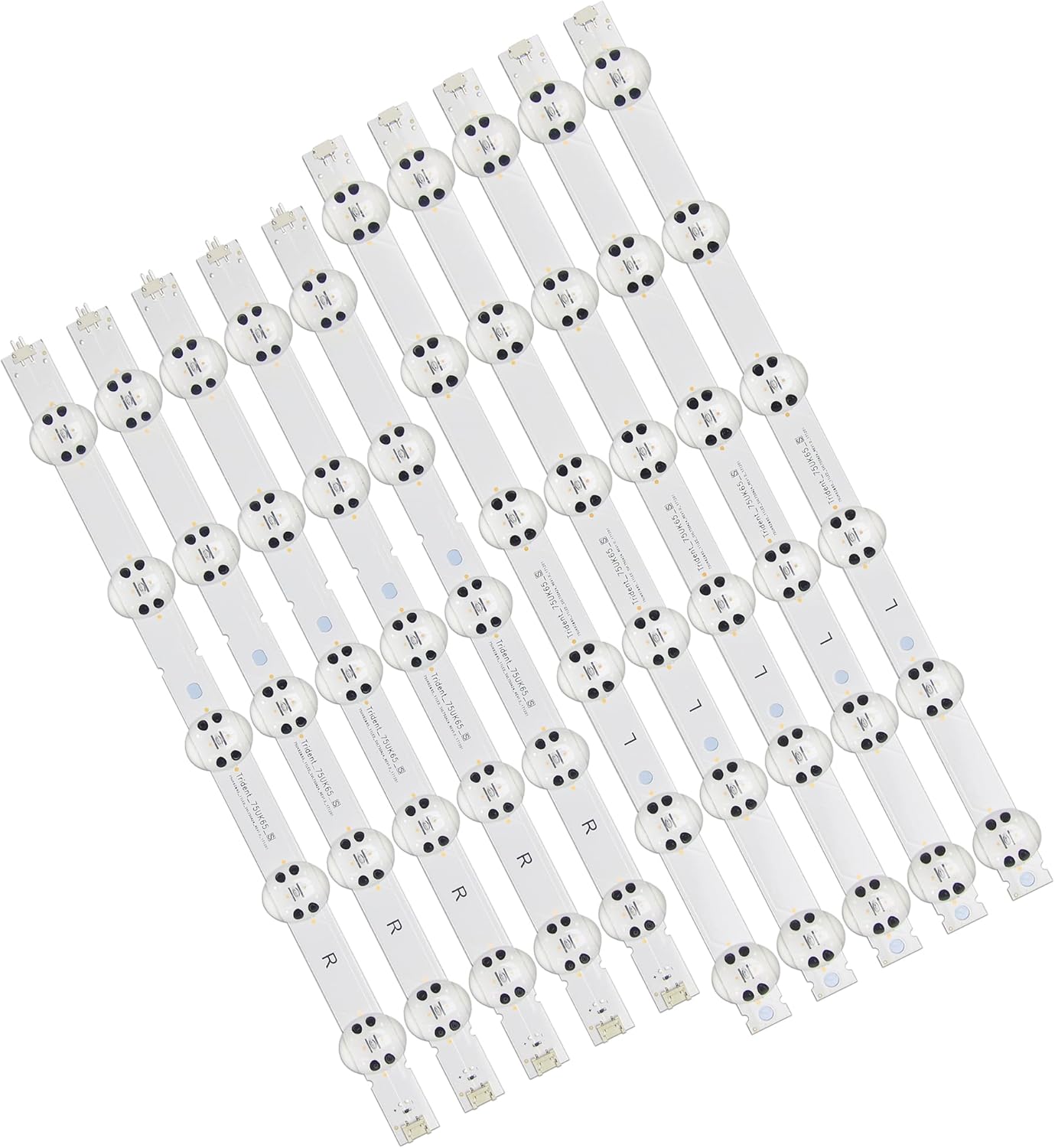

What’s Included in the 10-Piece Kit?

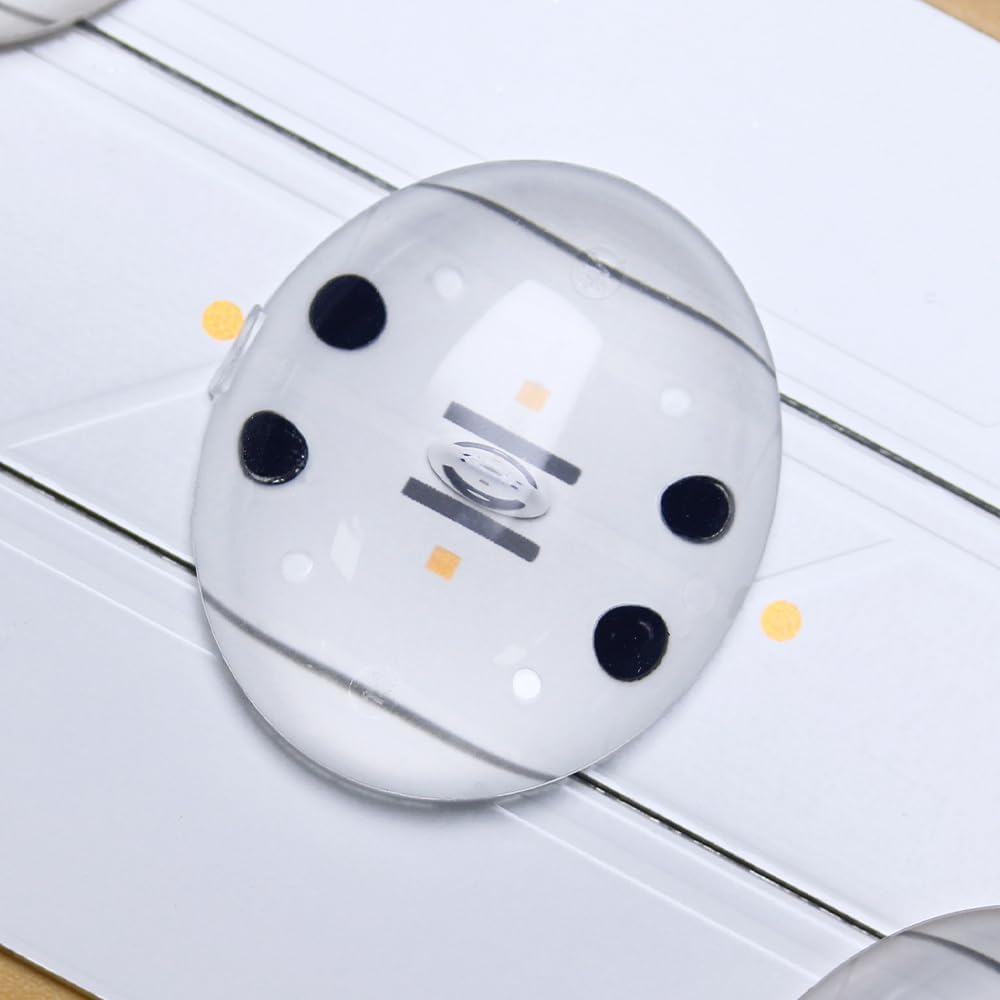

The package includes five left (L) and five right (R) sections, making five L+R assemblies. The listing gives a combined L+R length of 835 mm (32.87 inches) and 11 LEDs per combined assembly, with each individual LED rated at 6 V. These figures describe a left-and-right combination—not each separate section. The strips have double-sided adhesive backing and must not be cut.
- Primary part number: EAV63992101
- Related part references: EAV63992102 and AGM76249101
- Strip markings: 75UK62&65_11LED_SVL750A25, SVL750A24 and EAV63993102

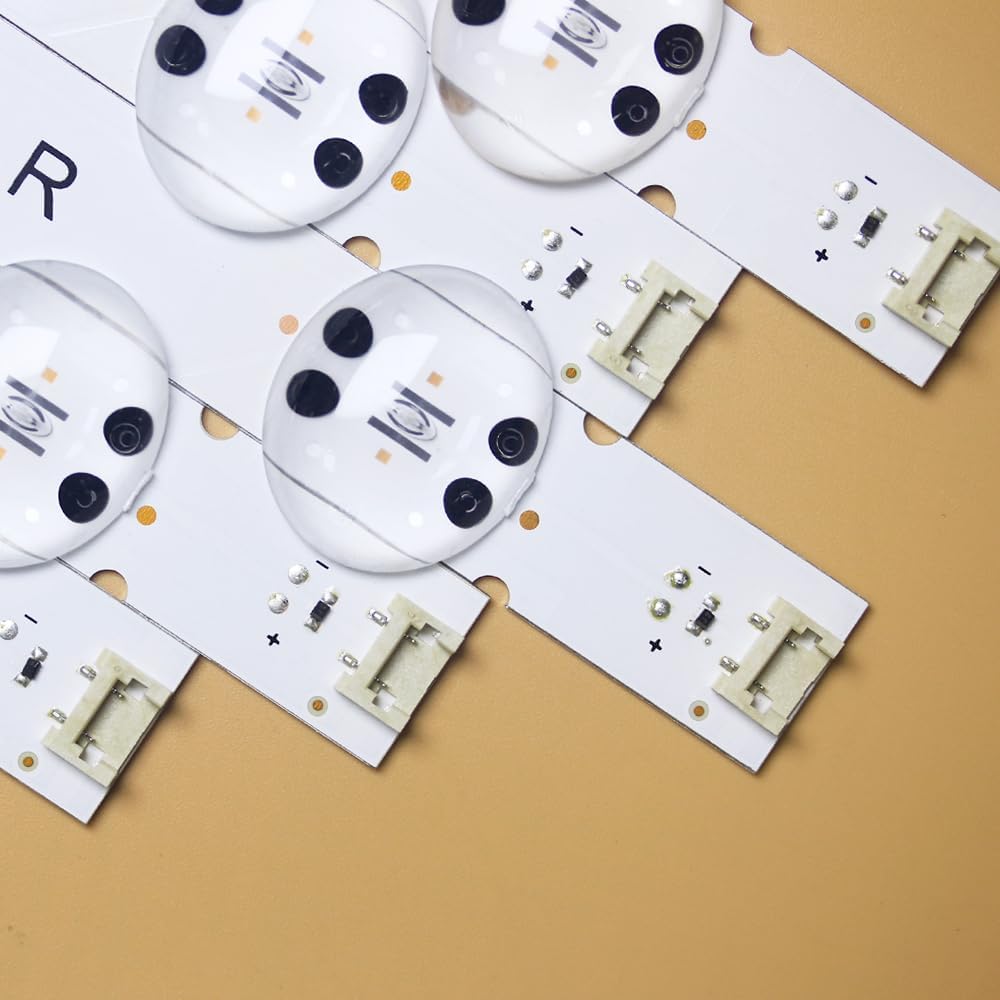

- Panel references: NC750DQE-ABGR3, NC750DQG-ABGRE
- Package: 10 sections (5L + 5R), with adhesive backing
Which LG TVs May Use These Backlight Strips?
According to the supplied compatibility data, these parts are associated with select LG models and production codes:
- 75UK6190PUB: BUSGLOR
- 75UK6570PUB: BUSWLOR, BUSGLOR
- 75UM6970PUB: BUSGLOR, BUSYLOR
- 75UM7570PUD: BUSGLOR, BUSYLOR
- 75UN7070PUC: AUSFLKR, BUSFLKR
- 75UN8570PUC: BUSWLOR, BUSWLKR
Other related listings include 75UM7570AUE, 75UN6950ZUD and 75UP7070PUD. Fitment is not guaranteed by the TV model alone. Check the full model and product code on your television, then compare the original strip numbers, L/R arrangement, connector positions, mounting holes, and 835 mm combined length.
LG TV Has Sound but No Picture?
If your LG television plays audio but shows a black screen, failed LED backlighting is one possible cause. With the set fully assembled and powered on, shining a flashlight at an angle across the screen may reveal a faint image. That clue does not prove the strips have failed: the LED driver or power supply may also require diagnosis. See GuuYebe’s TV Has Sound But No Picture guide.
Should You Buy This Replacement Set?
The EAV63992101 LED backlight strips are worth considering after confirming a backlight fault and matching your original assembly. Replacing a complete matching set avoids mixing aged sections with new ones. Removing a 75-inch LCD panel is delicate, and internal components can retain dangerous electrical energy after unplugging. Professional repair is advisable without suitable experience.
Quick FAQs
How many pieces are included? Ten sections: five left and five right.
Is each section 835 mm long? No. The listed 835 mm applies to an L+R combination.
Will these strips fit every 75UK6190PUB? Not automatically. Confirm the product code and original strip layout.
Can I trim the strips? No. They are fixed-length replacement parts.
