LB70006 LED Backlight Strips for Vizio E70-E3
LB70006 LED Backlight Strips for Vizio E70-E3
Looking for LB70006 LED backlight strips to repair a Vizio E70-E3 70-inch TV? GuuYebe offers a 12-piece replacement kit for the A+B backlight arrangement used in select E70-E3 sets. This guide covers the part markings, specifications, and checks to make before ordering.
View the LB70006 Backlight Kit at GuuYebe

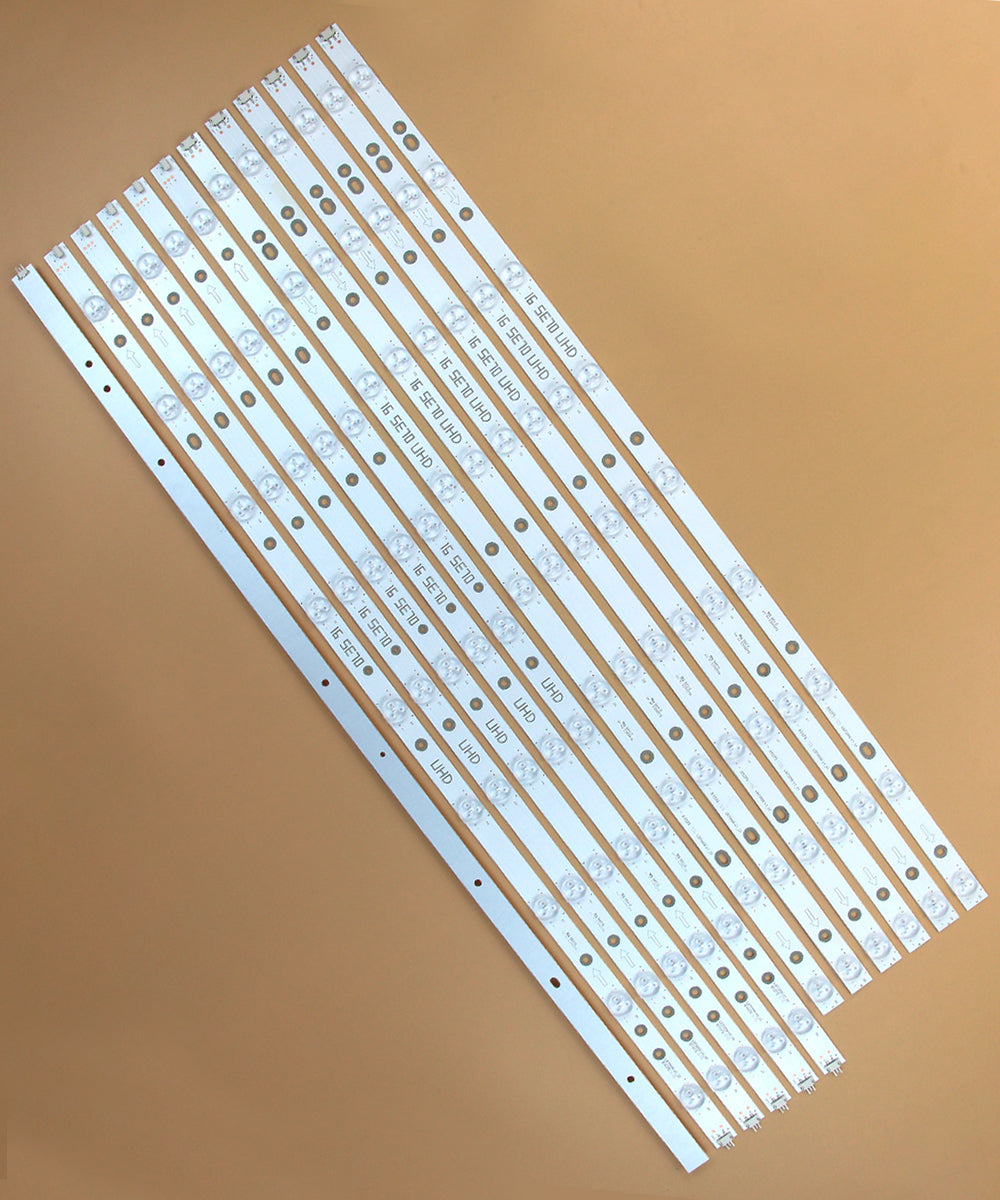

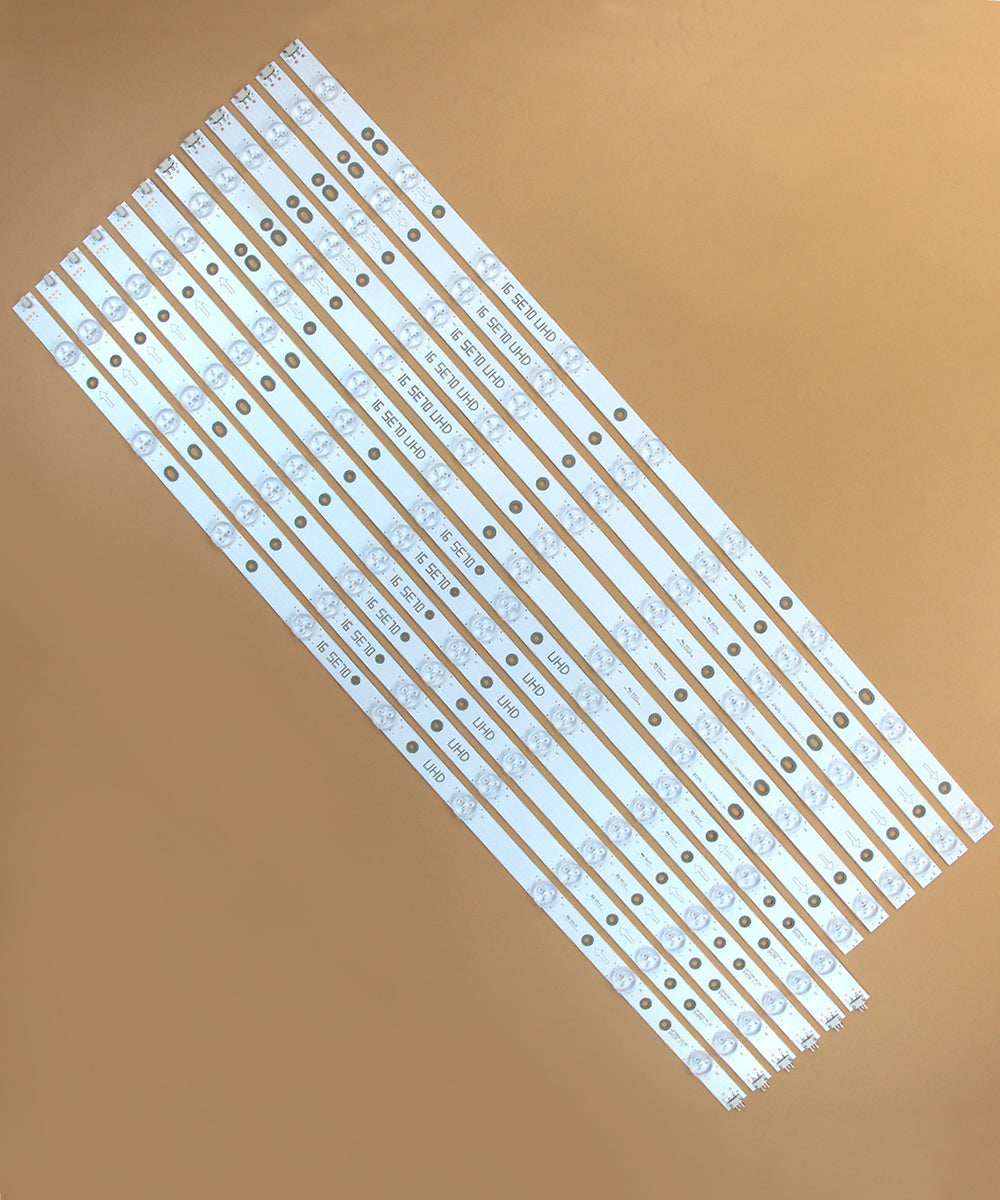

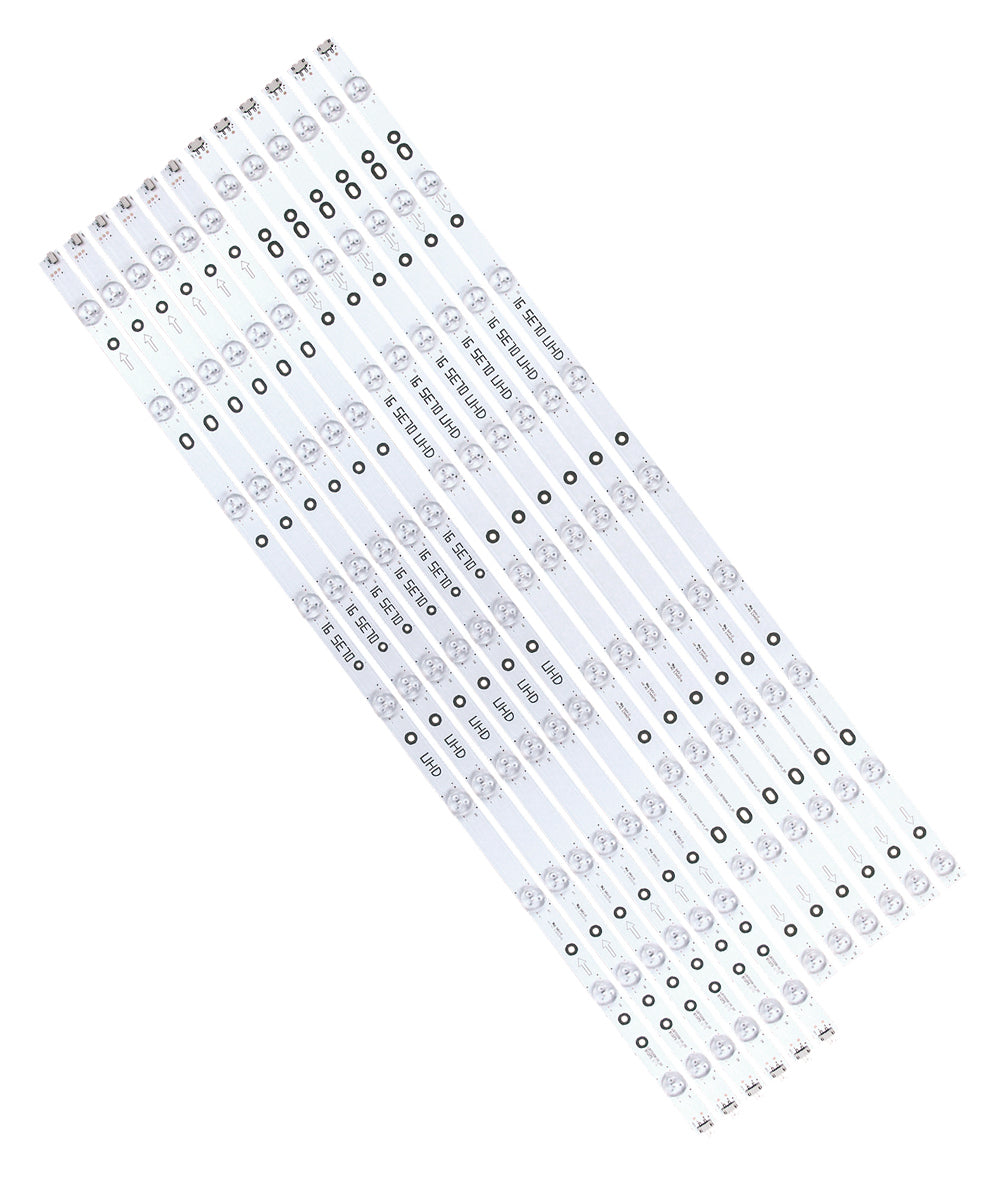

What’s in the 12-Piece LB70006 Kit?
The kit includes 12 LED strip pieces intended for an A+B layout. The listed 1,415 mm (55.7 inches) refers to the combined A+B length, not one individual piece. The product specifies 18 LEDs per combined A+B assembly (listed as 9+9) and 3 V per individual LED; this is not the complete strip’s operating voltage.
- Main part number: LB70006
- Listed strip markings: LB70006 V1_00 and LB70006 V0_01
- Panel references: 10260150231 and 10260152231
- Package contents: 12 LED strip pieces, A+B configuration
- Fitment note: verify the actual A/B piece distribution and connectors against your original assembly
Will These Strips Fit Your Vizio E70-E3?
The source compatibility list identifies Vizio E70-E3, including production versions LFTRVRCT and LFTRVRAS. Check the complete TV model and version on the rear label. Then compare the original LB70006 printing, A+B arrangement, LED spacing, connectors, mounting points, and overall length before you buy.
Important: a matching TV model or panel reference is a starting point, not a guarantee that every production revision uses identical backlights. Different LB70006 markings should not automatically be assumed interchangeable.
Vizio E70-E3 Has Sound but No Picture?
If your TV has audio but the screen stays dark, failed backlighting is one possible cause. With the TV fully assembled and operating, a flashlight aimed across the screen may reveal a faint image. This does not prove the strips are faulty: the LED driver or power supply may also need testing. See the TV Has Sound But No Picture troubleshooting guide.
Our Buying Recommendation
This LB70006 Vizio E70-E3 backlight replacement kit is worth considering when the original A+B strips match and a backlight fault has been diagnosed. The strips are fixed-length components and must not be cut. Removing a 70-inch LCD panel involves fragile glass and potential electrical hazards; professional repair is advisable without suitable experience.
Quick FAQs
How many pieces are included? Twelve LED strip pieces in the listed A+B kit.
Is each piece 1,415 mm long? No. That is the listed combined A+B length.
Does every Vizio E70-E3 use LB70006? Not necessarily. Confirm the TV version and original strips.
Can the strips be cut? No. Use the correct fixed-length replacement assembly.
