Vizio V755-J04 LED Backlight Strips: Replacement Guide
Looking for Vizio V755-J04 LED backlight strips to repair your 75-inch TV? The GuuYebe 16-piece replacement kit includes LED strips associated with SSC-F75JL63030061607B, SVB750A98 and related part numbers. Here is what you should know about the kit, compatible Vizio versions and backlight troubleshooting before ordering.
View Vizio V755-J04 Backlight Kit at GuuYebe

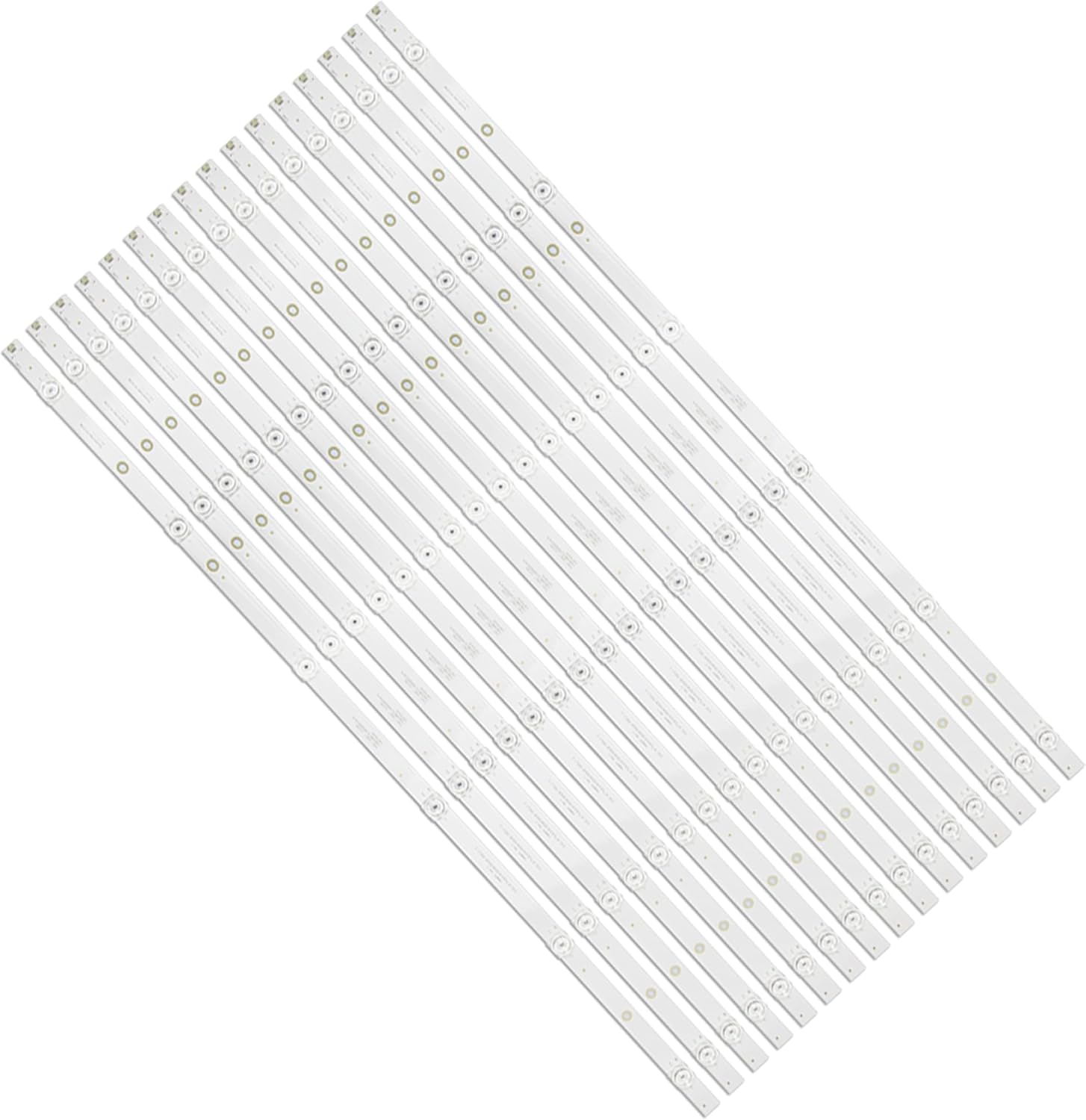

What’s Included in the 16-Piece Kit?
The GuuYebe replacement kit contains 16 LED backlight strips. According to the product specifications, each strip measures approximately 730 mm (28.74 inches) and contains six LEDs rated at 6 V per individual LED. The strips include double-sided adhesive backing for installation on compatible mounting surfaces.

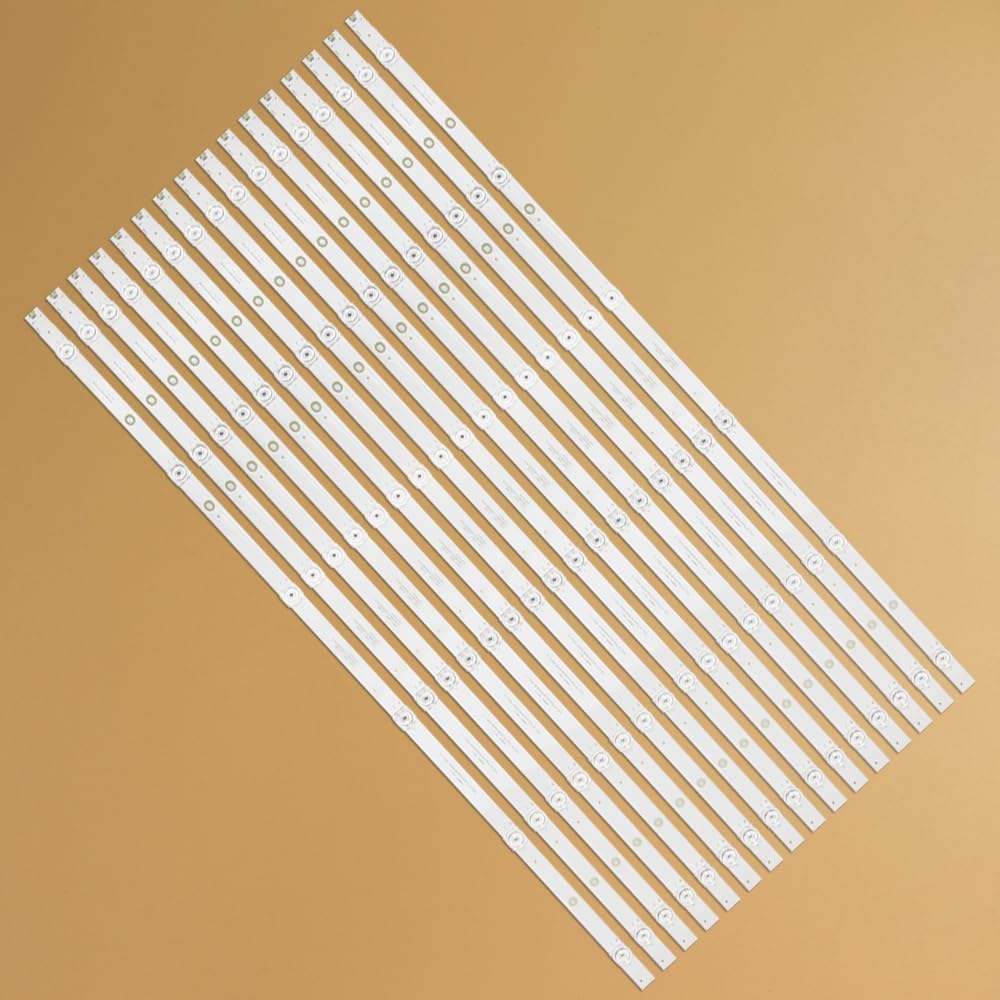

- Main part number: SSC-F75JL63030061607B

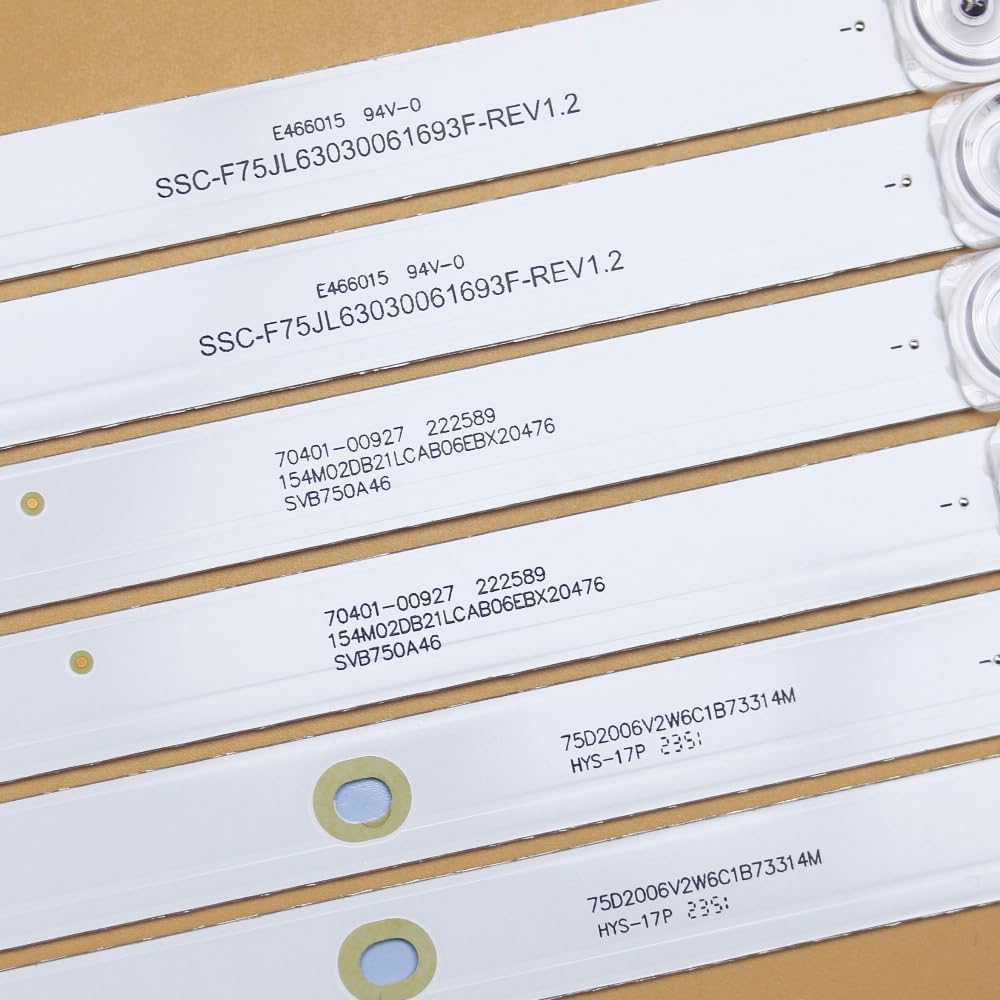

- Additional references: SVB750A98, SVB750A78 and SVB750A46
- Strip identification: SSC-F75JL63030061607B-REV1.4

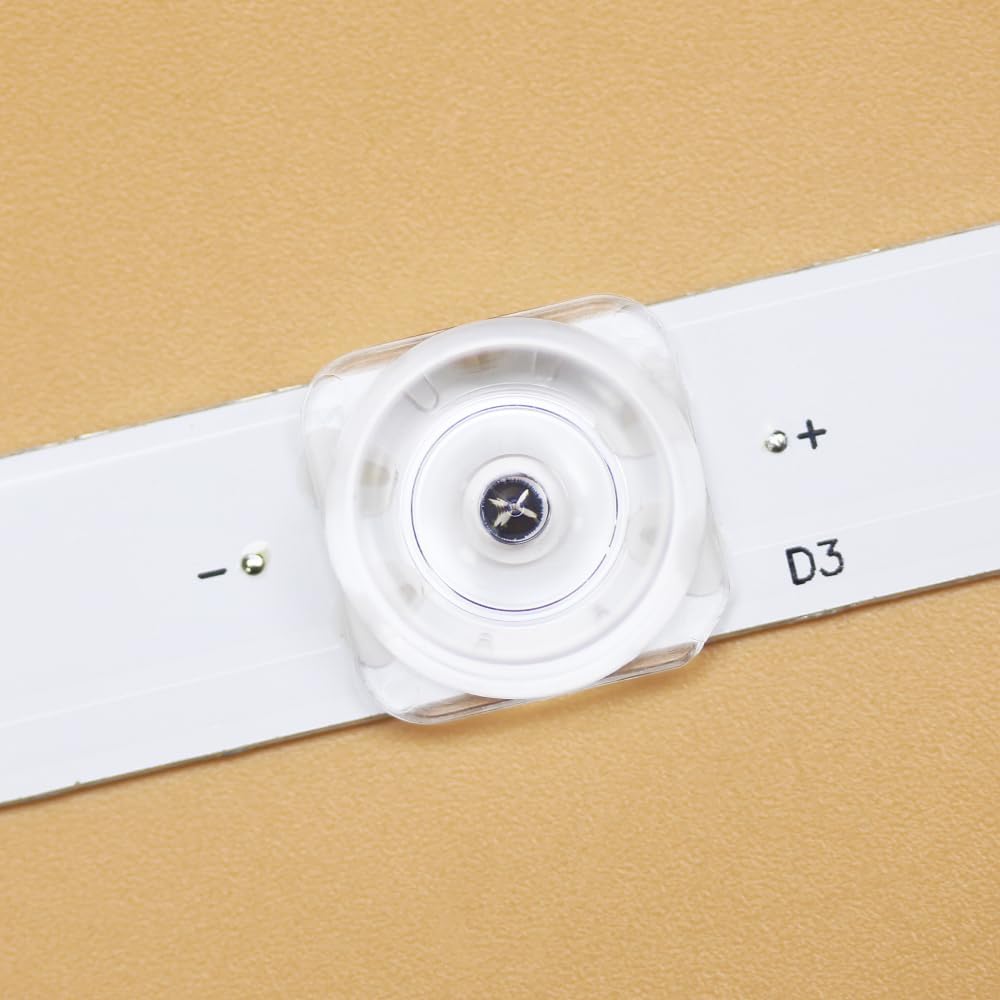

- Other listed marking: SSC-F75JL63030061693F-REV1.22
- Package: 16 LED strips with six LEDs per strip
- Dimensions: 730 mm per strip; fixed length, not cut-to-fit
Which Vizio 75-Inch TVs May Be Compatible?
The supplied fitment information identifies the Vizio V755-J04 and also lists the V755-H4 and V755-G4 as related television models. Production versions matter:
- V755-J04: LBNFE5KX, LBNFE5LX and LBSFE5TY
- V755-H4: LBNFB4KW and LBNFB4KX
- V755-G4: no specific version supplied
Before buying: verify the full TV model and production version on the rear label. Compare the original printed strip numbers, 730 mm length, six-LED layout, connector orientation and mounting points. Related codes such as 70401-01274, 70401-01083 and 70401-01558 are identification references, not automatic proof that different strips are interchangeable.
Vizio TV Has Sound but No Picture?
If your Vizio TV plays sound but the screen stays black, failed LED backlighting may be one possible cause. With the TV fully assembled and powered on, shine a flashlight at an angle across the display. A faint image may indicate that the screen is producing a picture without normal backlighting.
This test does not prove the LED strips are defective. The LED driver or power supply may also require diagnosis. For additional help, see the TV Has Sound But No Picture troubleshooting guide.
Our Buying Recommendation
The Vizio V755-J04 LED backlight strips kit is worth considering when your original assembly matches the listed part numbers and a backlight failure has been confirmed. A complete 16-strip kit may be a practical option when replacing an aging, matching backlight assembly.
Repairing a 75-inch TV requires careful LCD panel removal, suitable workspace and experienced handling. The panel is extremely fragile, and internal circuits can remain electrically hazardous after unplugging the television. Professional installation is recommended if you are not familiar with large-screen TV repairs.
Quick FAQs
How many strips are included? Sixteen LED strips, with six LEDs per strip according to the supplied specifications.
Will this fit every Vizio V755-J04? Not necessarily. Check the production version and original backlight assembly.
Do the strips include adhesive? Yes. The product listing specifies double-sided adhesive backing.
Can these strips be cut? No. They have fixed lengths and should not be modified.
